CCS

Aplicación

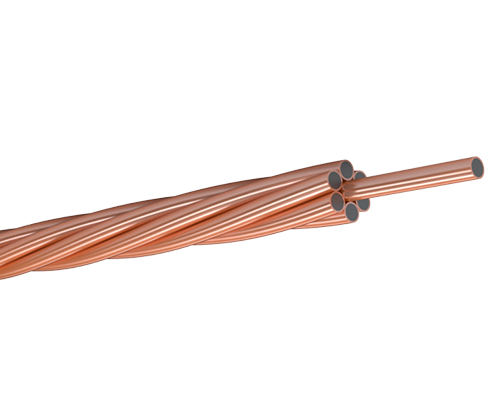

DSA Copper Clad Steel stranded conductors are used in place of copper conductors in grounding applications and systems.conductors are classified as follows: Grade 40 HS, Grade 30 HS, Grade 30 EHS, Grade 40 DSA, and Grade 30 DSA.CCS strand wire is divided into soft state and hard state with perfect conductivity, which is a good choice for various industries such as communications, electrical power and electronics.

DESCRIPCIÓN
El alambre de acero recubierto de cobre (CCS) combina la alta resistencia a la tracción del acero en su núcleo y las propiedades de conductividad del cobre en su capa exterior. El material del núcleo suele ser acero de bajo carbono y se utiliza generalmente como alambre de conexión a tierra o como conductor interno de cables coaxiales.

ESPECIFICACIÓN
• ASTM B 228 Concentric-Lay-Stranded Copper-Clad Steel Conductors

Alta fiabilidad

Uhv

Poco mantenimiento

Parámetros técnicos

ASTM B 228

Tamaño	Área Nominal de Sección Transversal		Número de Alambres	Diámetro		Mínima Carga de Rotura		Peso	Resistencia C.D máxima a 20 ºC
				Alambre	Externo	Grado 40 HS	Grado 40 DSA	Grado 40
AWG	mm²	in²		mm	mm	kN	kN	kg/km	ohm/km
19 No.5	318.71	0.4940	19	4.620	23.11	216.66	76.68	2660.8	0.14423
19 No.6	252.71	0.3917	19	4.115	20.57	179.45	60.81	2110.2	0.18183
19 No.7	200.45	0.3107	19	3.665	18.31	148.29	48.23	1674.2	0.22937
19 No. 8	158.97	0.2464	19	3.264	16.31	122.46	38.27	1327.4	0.28896
19 No. 9	126.06	0.1954	19	2.906	14.53	100.86	30.33	1052.6	0.36452
7 No. 4	148.06	0.2295	7	5.189	15.57	96.15	35.61	1231.5	0.30930
7 No. 5	117.42	0.1820	7	4.620	13.87	79.84	28.25	976.5	0.38978
7 No. 6	93.10	0.1443	7	4.115	12.34	66.10	22.41	774.3	0.4915
7 No.7	73.87	0.1145	7	3.665	11.00	54.63	17.76	614.5	0.6201
7 No. 8	58.56	0.09077	7	3.264	9.78	45.12	14.10	487.1	0.7812
7 No. 9	46.44	0.07198	7	2.906	8.71	37.16	11.18	386.2	0.9859
7 No. 10	36.83	0.05708	7	2.588	7.77	30.73	8.87	306.3	1.2422
3 No. 5	50.32	0.07800	3	4.620	9.96	36.10	12.78	417.7	0.9082
3 No. 6	39.90	0.06185	3	4.115	8.86	29.91	10.14	331.3	1.1447
3 No. 7	31.65	0.04905	3	3.665	7.90	24.71	8.04	262.7	1.4440
3 N0. 8	25.10	0.03890	3	3.264	7.04	20.41	6.38	208.3	1.8193
3 No. 9	19.90	0.03085	3	2.906	6.27	16.81	5.05	165.2	2.2957
3 No. 10	15.78	0.02446	3	2.588	5.59	13.90	4.01	131.0	2.8929
3 No. 12	9.93	0.01539	3	2.052	4.42	7.32	2.55	82.4	4.5573

Tamaño	Área Nominal de Sección Transversal		Número de Alambres	Diámetro		Mínima Carga de Rotura			Peso	Resistencia C.D máxima a 20 ºC
				Alambre	Externo	Grado 40 HS	Grado 40 DSA		Grado 40
AWG	mm²	in²		mm	mm	kN	kN		kg/km	ohm/km
19 No.5	318.71	0.4940	19	4.620	23.11	239.64	288.54	86.28	2634.0	0.19227
19 No.6	252.71	0.3917	19	4.115	20.57	197.68	239.51	68.41	2087.9	0.24240
19 No.7	200.45	0.3107	19	3.665	18.31	162.74	197.72	54.23	1656.3	0.30576
19 No. 8	158.97	0.2464	19	3.264	16.31	133.98	162.65	43.06	1313.6	0.3852
19 No. 9	126.06	0.1954	19	2.906	14.53	109.93	132.02	34.12	1041.7	0.4862
7 No. 4	148.06	0.2295	7	5.189	15.57	106.86	126.87	40.07	1218.7	0.4124
7 No. 5	117.42	0.1820	7	4.620	13.87	88.28	106.28	31.78	966.4	0.5197
7 No. 6	93.10	0.1443	7	4.115	12.34	72.86	88.24	25.21	766.3	0.6552
7 No.7	73.87	0.1145	7	3.665	11.00	59.97	72.86	19.99	608.1	0.8268
7 No. 8	58.56	0.09077	7	3.264	9.78	49.34	59.92	15.86	482.0	1.0414
7 No. 9	46.44	0.07198	7	2.906	8.71	40.51	48.63	12.57	382.2	1.3144
7 No. 10	36.83	0.05708	7	2.588	7.77	33.48	39.69	9.97	303.1	1.6559
3 No. 5	50.32	0.07800	3	4.620	9.96	39.94	48.10	14.38	413.4	1.2104
3 No. 6	39.90	0.06185	3	4.115	8.86	32.95	39.92	11.41	327.8	1.5260
3 No. 7	31.65	0.04905	3	3.665	7.90	27.12	32.95	9.04	260.0	1.9250
3 N0. 8	25.10	0.03890	3	3.264	7.04	22.33	27.11	7.17	206.1	2.4253
3 No. 9	19.90	0.03085	3	2.906	6.27	18.32	22.00	5.69	163.5	3.0605
3 No. 10	15.78	0.02446	3	2.588	5.59	15.14	17.95	4.51	129.6	3.855
3 No. 12	9.93	0.01539	3	2.052	4.42	7.64	11.40	2.87	81.6	6.073
